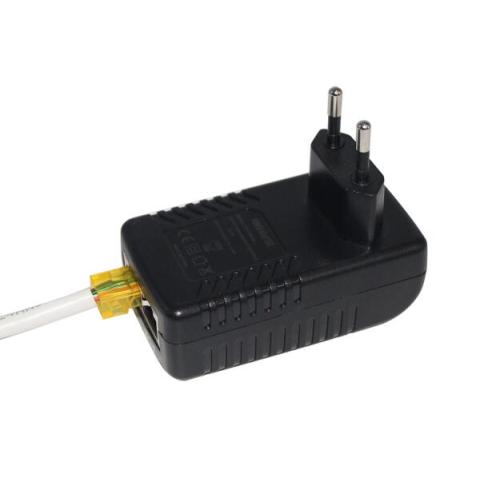

Wall PoE Injector Power Over Ethernet Adapter 48V 24W 0.5A for Security IP Cameras IP Phones

Group power adapter
PriceUS $8 / piece
Min. Order 500 piece
Terms of Payment L/C, D/A, D/P, Western Union
Update Time 2018-12-13
Item specifics
Input100-240V
Output48V
output plugRJ45 Plug
JacketABS
short voltage protectionYes
over voltage protectionYes
over current protectionyes
warranty2 years
skypeselina_shy
Output current:0.5a
  • Description
  • Product review
Features:
1.Input: AC100-240V 50/60Hz; Output: Data & Power (output voltage: 48V, output current: 0.5A) make it suitable for high-power devices like device, camera, big wireless etc.

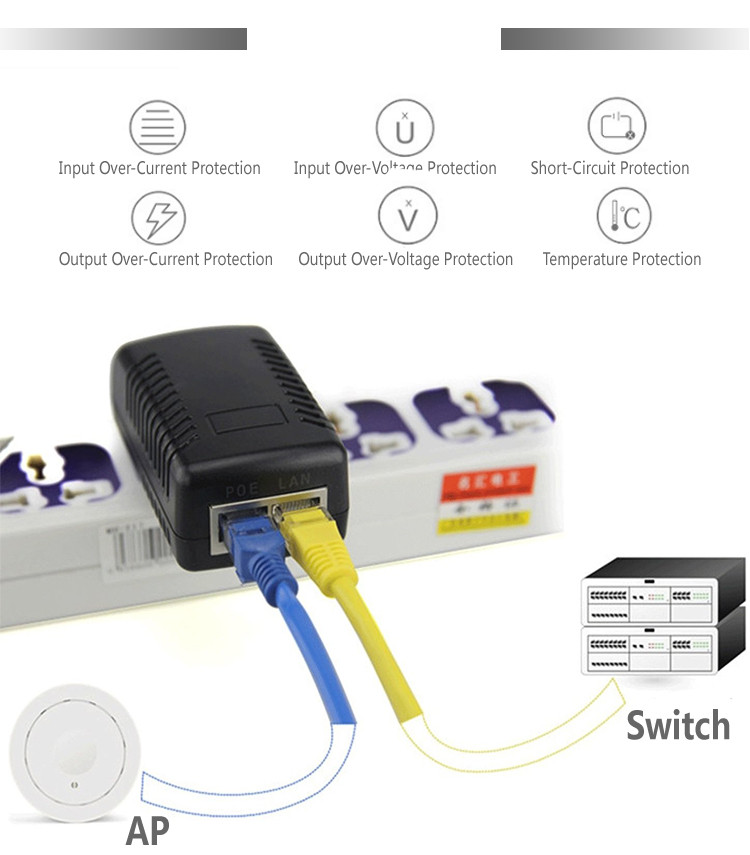

2.Short circuit, over-current, and over-voltage protection
3.The actual power arrived to device via RJ45 cable depends on transmission distance and RJ45 cable quality
4.Data In: Connect to network switch or router
5.Package content: 1x 48V 0.5A PoE Injector

Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

1.3A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

48v. 0.5A

Output power :

24W

Ripple and Noise :

<120Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection for power adapter

Leakage Current:

<5mA

DC cable   length:

1.5 meters

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE Rohs

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006

Data connector

 RJ45 +24V pins4&5, Power Return pins7&8

Futures:

Compliant with Isolation and Channel
Characteristics of IEEE802.3af
Data and Power carried over one Ethernet Cable

Application:

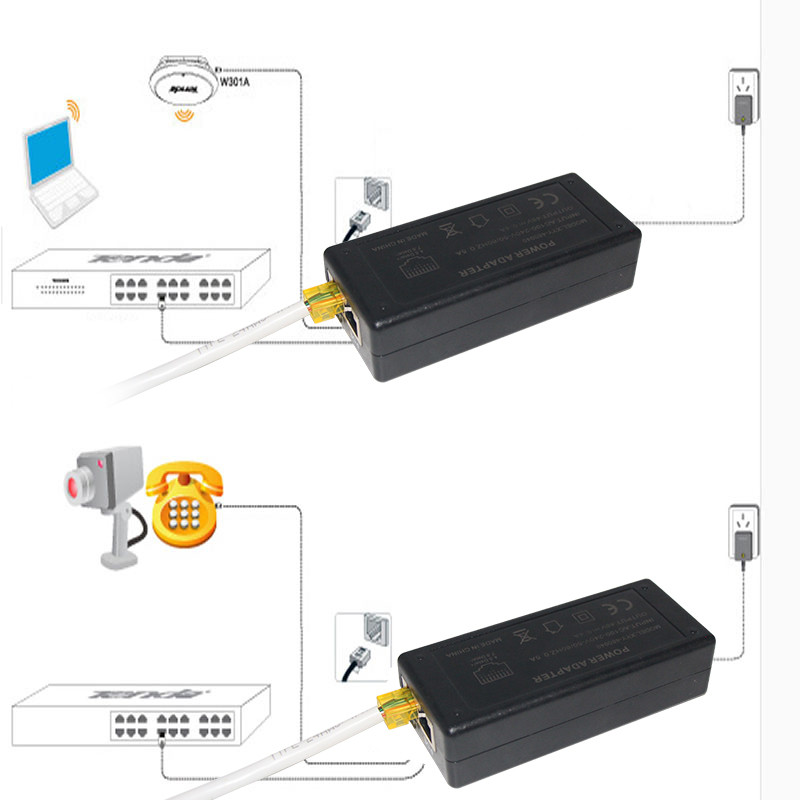

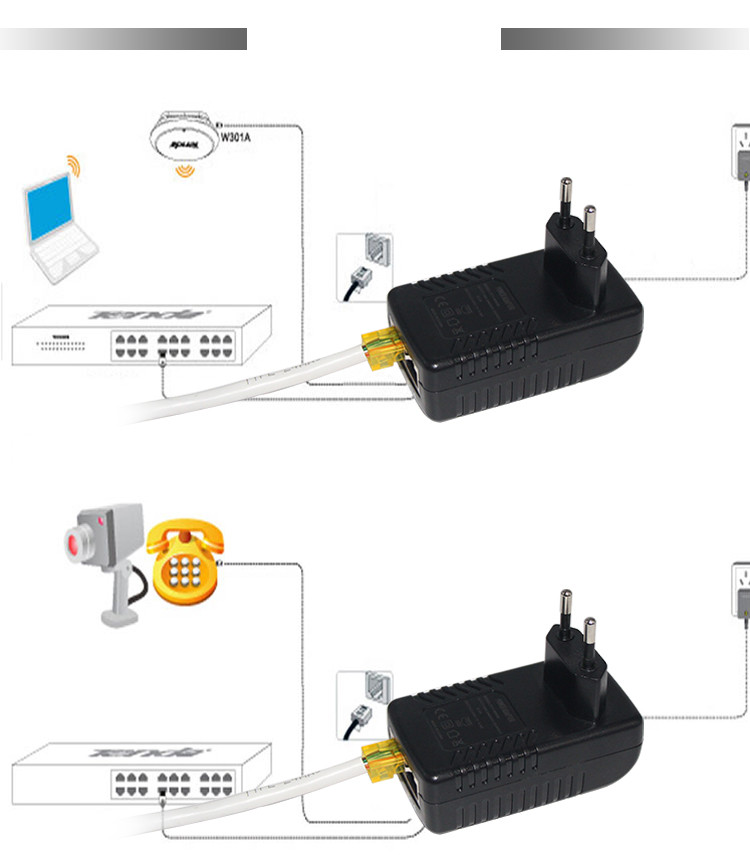

IP Telephones, Wireless Network Access Points, Blue Tooth Access Point IP Print Servers, Security Camera etc…
