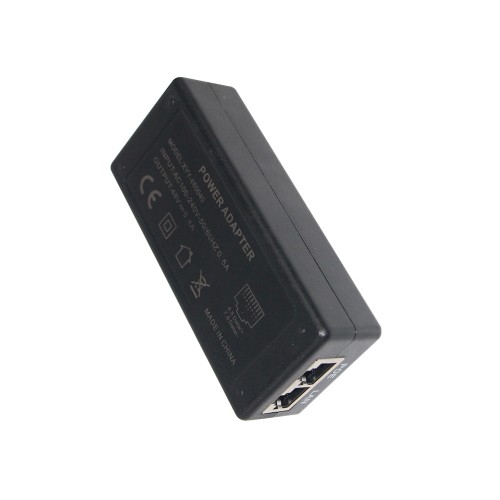

Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter
Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter
Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter
Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter
Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter
Price
US $8
Model
KC-006
MOQ
500 piece

Item specifics

Input
100-240V
Output
48V
output plug
RJ45 Plug
Jacket
ABS
short voltage protection
Yes
over voltage protection
Yes
over current protection
yes
warranty
2 years
skype
selina_shy
Output current:
0.5a

Review

Description

Features:
1.Input: AC100-240V 50/60Hz; Output: Data & Power (output voltage: 48V, output current: 0.5A) make it suitable for high-power devices like device, camera, big wireless etc.
2.Short circuit, over-current, and over-voltage protection
3.The actual power arrived to device via RJ45 cable depends on transmission distance and RJ45 cable quality
4.Data In: Connect to network switch or router
5.Package content: 1x 48V 0.5A PoE Injector

Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

1.3A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

48v. 0.5A

Output power :

24W

Ripple and Noise :

<120Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection for power adapter

Leakage Current:

<5mA

DC cable   length:

1.5 meters

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE Rohs

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006

Data connector

 RJ45 +24V pins4&5, Power Return pins7&8

Futures:

Compliant with Isolation and Channel
Characteristics of IEEE802.3af
Data and Power carried over one Ethernet Cable

Application:

IP Telephones, Wireless Network Access Points, Blue Tooth Access Point IP Print Servers, Security Camera etc…
